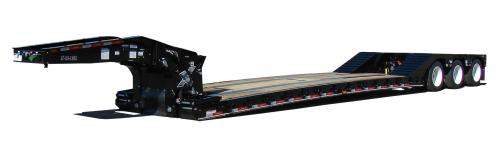

Felling Trailers’ X-Force Hydraulic Detachable Gooseneck model line now offers a “Super Low” deck height with the X-Force SL Series.

The X-Force SL Series provides an 18-inch usable level deck height with a 6-inch ground clearance, making it an ideal spec for carriers that specialize in extra-tall cargo/equipment transport. The low loaded deck height is ideal for a multitude of applications due to the full width level deck as opposed to a drop-side model.

Felling Trailers designed and engineered the SL Series with versatility and functionality in mind knowing that with changing markets, carrier’s cargo and equipment loads vary. The versatility offered with the 18-inch usable level deck height allows a carrier to transport cargo or equipment such as asphalt milling machines, paving equipment, track excavators, etc., that have tall transport heights, ultimately keeping the carrier’s wheels and payday rolling.

Related: Blog: Gas and Oil Fuel North Dakota’s Rise

The SL Series are offered in four capacities; XF-70-2 HDG-SL (35-ton capacity), XF-100-3 HDG-SL (50-ton capacity), XF-110-3 HDG-SL (55-ton capacity), and XF-120-3 HDG-SL (60-ton capacity).

Options on the X-Force SL Series include: bolt-on load bearing wheel covers, several main deck to trunnion approach angle options, gooseneck fenders, amber LED strobe light system, and rear beavertail and ramp configurations.

Standard specifications include:

Related: Editor's Notebook: Shifting Focus
  • Load Capacities: 35-60 tons
  • Approx. Deck Height: 18 inches loaded with 6-inch ground clearance
  • Lift Cylinders: (2) 7 inches on XF-70-2 HDG-SL, XF-100-3 HDG-SL & XF-110-3 HDG-S (2) 8 inches on XF-120-3 HDG-SL
  • Multi-Position Ride Height: Five-position ride height cam blocks
  • Frame: Engineered, cambered, fabricated 12-inch main beams and side beams with T-1 Flanges
  • Crossmembers: 8-inch I-Beam crossmembers on 24-inch centers
  • Drop center crossmembers in rear trunnion area
  • Flip axle ready, plumbing and brackets (standard on 55- and 60-ton models)

For more information, visit www.felling.com or call 1-800-245-2809.
